General:
- Sealing materials: EPDM / FPM
- Body materials: PVC-u - PVDF
- Ball seating joint: PTFE (Teflon®)

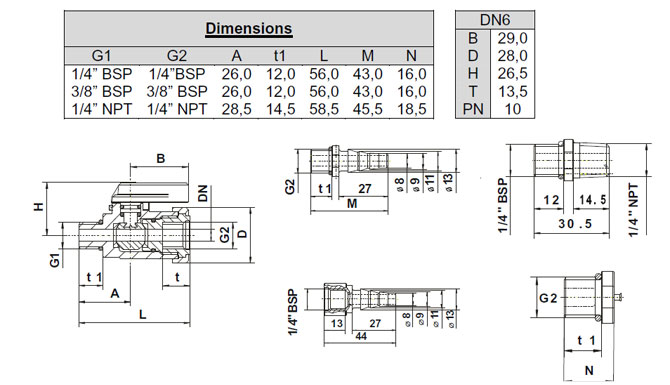

- Dimension: DN 6

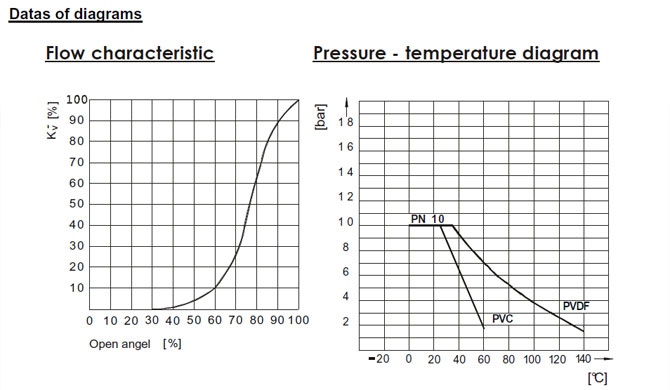

Operating pressure:
DN 6 / R 1/4”, R 3/8” 10 bar
End connections
(Set of end connections):
- hose nozzle
- double nipple BSP, NPT
- plug BSP, NPT
Technical specification (e.g. PVC):

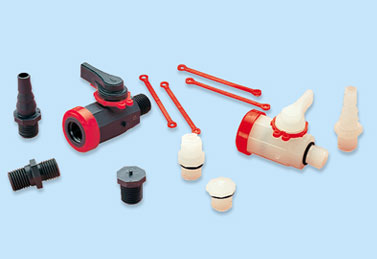

Laboratory Ball Valve DN6 PVC grey
Female thread/Male thread 1/4" - 1/4"
BSP PN10 EPDM PTFE
with accessories |
|
Technische features:

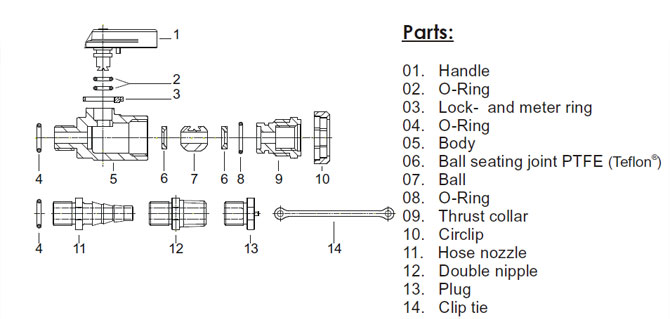

1) Lock- and Metering Ring for protection of sampling valve S4 of any unaware opening as well
as for fix adjustment of ball
opening angle.
2) Sampling Valve S4 can be 100% opened by any time by taking of lock- and metering ring.
3) An extensive range of accessories such as hose nozzle, double nipple and plug will be
supplied in a set as standard.
4) Through additional safety ring on top of the sampling valve the unit will be additionally
protect against high pressures and
temperatures.
5) Two sizes in 3/8“ and ¼“ with two different threads (BSP and NPT) are available. Please
note: Only one thread type per
valve. |
| |
 |
 |
 |
| This print has purpose of providing information but does not express any guarantees.
Our product range will be extended constantly hence all information correspond to types and products that were valid
at time of printing.
Subject to change without prior notice! |
|
| |
