PRAHER

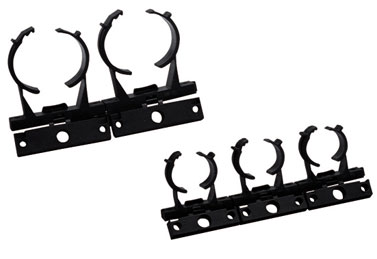

PP PIPE HANGER
 |

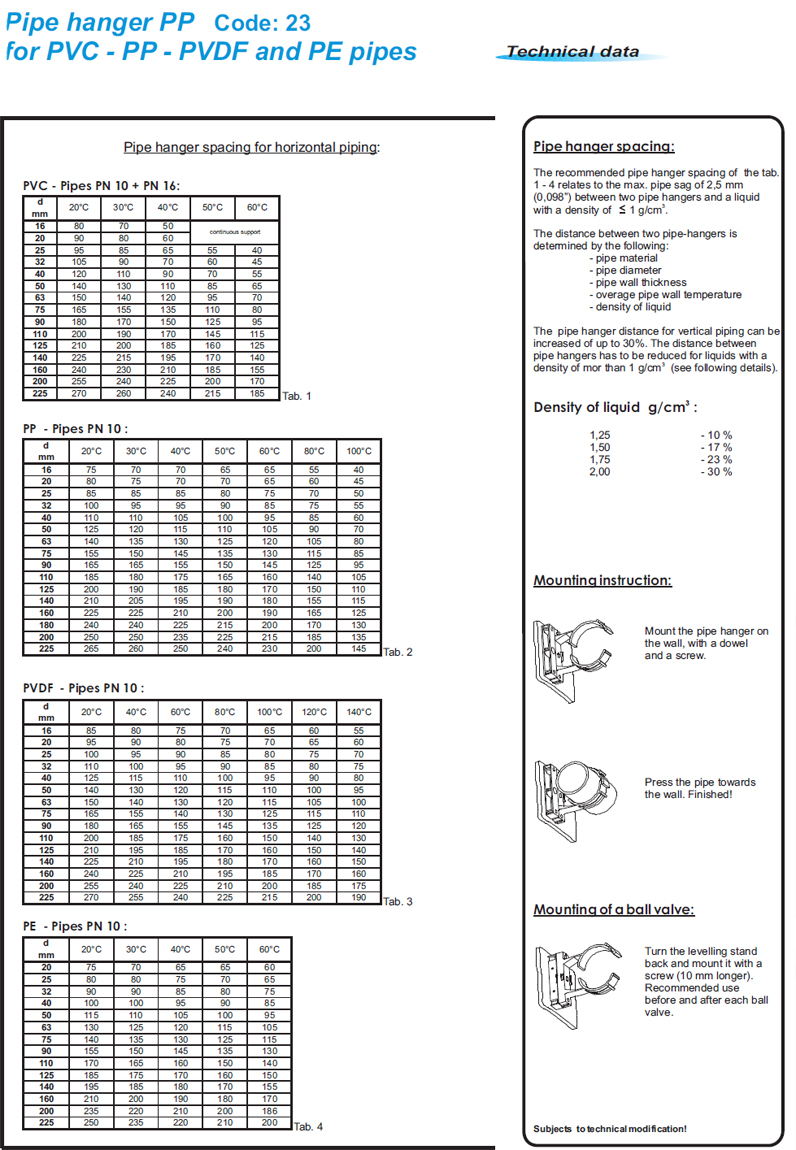

General:
- Dimensions:
d 10, 12 (Type A)
d 16-19 - 87-95
(Type B)
d 110 - 225 (Type C)
- Material: PP
Technical specification:
for example:
TYPE “B” PRAHER
Pipe hanger d 20

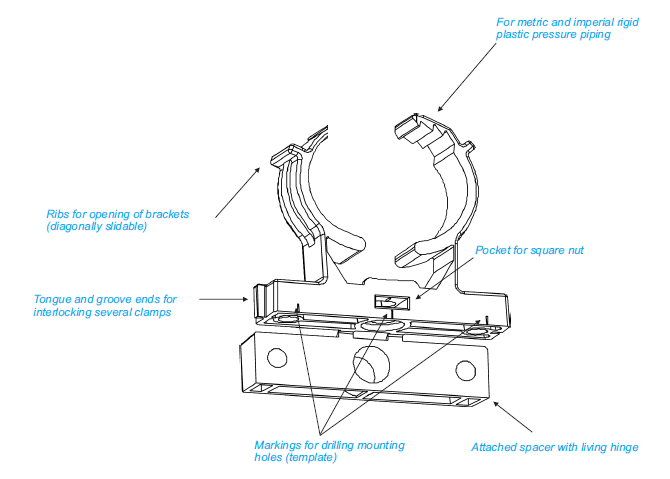

Features:
- corrossion resistant
- for ANSI, ASTM, DIN, JIS, SCH 80 - Pipes
(ONLY TYP B)
- easy assembling
- long working life |
|
 |
 |
 |
Type A
| d |
mm |
10 |
12 |
| d1 |
mm |
3,2 |
4,2 |
| d2 |
mm |
3,1 |
4,2 |
| d3 |
mm |
7,0 |
8,0 |
| d4 |
mm |
- |
- |
| Z |
mm |
16,0 |
19,0 |
| G |
mm |
14,5 |
17,0 |

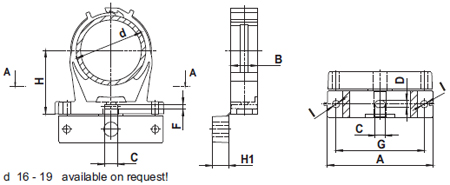

Dimensions in mm! |
Type B
d
|
20-23 |
25-28 |
31-35 |
39-43 |
47-51 |
60-65 |
72-80 |
87-95 |
|
1/2" |
3/4" |
1" |
1 1/4" |
1 1/2" |
2" |
2 1/2" |
3" |
H
|
27,0 |
30,0 |
31,5 |
37,0 |
41,0 |
49,0 |
70,0 |
80,0 |
H1
|
6,0 |
10,0 |
11,5 |
14,0 |
15,0 |
15,0 |
15,0 |
20,0 |
A
|
56,0 |
61,0 |
67,0 |
80,0 |
84,5 |
96,5 |
126,0 |
137,0 |
B
|
14,0 |
16,0 |
16,0 |
17,5 |
20,0 |
24,0 |
26,0 |
26,0 |
C
|
9,0 |
9,0 |
9,0 |
9,0 |
9,0 |
9,0 |
12,0 |
12,0 |
D
|
6,5 |
6,5 |
6,5 |
6,5 |
6,5 |
6,5 |
8,5 |
8,5 |
E
|
11,0 |
11,0 |
11,0 |
11,0 |
11,0 |
11,0 |
14,0 |
14,0 |
F
|
3,5 |
3,5 |
3,5 |
3,5 |
3,5 |
3,5 |
4,3 |
4,3 |
G
|
41,0 |
46,0 |
52,0 |
64,0 |
70,0 |
80,0 |
106,0 |
117,0 |
| I |
6,5 |
6,5 |
6,5 |
6,5 |
6,5 |
6,5 |
8,5 |
8,5 |
Dimensions in mm! |
| |
|
 |
Type C
| d |
mm |
110 |
125 |
140 |
160 |
200 |
225 |
| d1 |
mm |
8,5 |
8,5 |
8,5 |
8,5 |
8,5 |
8,5 |
| d2 |
mm |
7,0 |
7,0 |
8,0 |
8,0 |
8,5 |
8,5 |
| d3 |
mm |
19,0 |
19,0 |
19,0 |
19,0 |
19,0 |
19,0 |
| d4 |
mm |
167,0 |
185,0 |
204,0 |
228,0 |
287,0 |
325,0 |
| Z |
mm |
189,0 |
207,0 |
226,0 |
250,0 |
311,0 |
344,0 |
| G |
mm |
80,0 |
105,0 |
114,0 |
124,0 |
158,0 |
170,5 |
Dimensions in mm! |
|
|
| |
